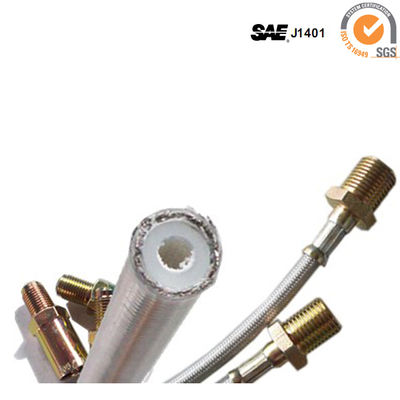

OE quality DOT approved brake line

China OE quality DOT approved brake line supplier
OE quality DOT approved brake line supplier OE quality DOT approved brake line supplier

Large Image :  OE quality DOT approved brake line

Product Details:

Place of Origin: CHINA
Brand Name: QDGY
Model Number: GSG

Payment & Shipping Terms:

Price: NEGOTIABLE
Packaging Details: 200PCS PER CARTON
Delivery Time: WITHIN 15 DAYS
Payment Terms: L/C,T/T
Supply Ability: 9000,000PCS PER MONTH
Minimum Order Quantity: 500PCS
Contact Now
Detailed Product Description

auto parts dubai
1.Professional factory
2.TS16949&ISO9001:2000
3.Top-aftermarket&OEM
4.Free samples for checking quality

OE quality DOT approved brake line

Material:

Hose: EPDM rubber hose

Fitting: carbon steel with yellow zinc

Other material is available:stainless steel,carbon steel with white zinc,chrome...

Quality Conformance:

According SAE J1401,ISO 9001,FMVSS 106 standards Hydraulic brake hose assemblies for use with None petroleum-Base Hydraulic Fluids.

Features:

-High durability and flexibility

-Low volume expansion

-100% high pressure tested & certified qulity

-ISO/TS 16949:2009 certified production plant

-Almost cover all the American,European,Japanese,Korean,Chinese series vehicles

Technical Parameters:

InnerØ:3.2-3.5mm

Test pressure(by air):10.3Mpa-14.5Mpa/25sec

Test pressure(by oil): 27.6Mpa/2min

Burst pressure:minimum 49.03Mpa

Tensile Test:more than 1446N,at 25±3mm/min speed

Application:

For use in the hydraulic braking system of a road vehicle.

Technical Data:

Test ItemsTest ConditionStandard SpecTest Results
ID3.2mm3.15~3.45
OD10.5mm10.30~10.70
Volumetric expansion6.9MPa1.08ml/m0.562ml/m
10.3MPa1.38ml/m0.783ml/m
Burst27.6MPa × 2min;
pressure raste 172.5±69MPa/min
no leakage, >49MPa>75MPa
Brake fluid compatibilit120°C × 70h,27.6MPa × 2min;
pressure raste 172.5±69MPa/min
no leakage,
>49MPa
>80MPa
Whipkeep 1.55~1.72MPa>35h>80h
Tensiletensile speed:25±3mm/min>1446N2400N
Cold Bend-45°C ~-48°C× 72h, 3-5s,
bending180°
no crack,no ruptureno crack,no rupture
Ozone100pphm×70h×40°C,enlarge 7 timesno crackingno cracking
Salt Spray5%NaCl,after24h,water cleanout in 35°Cno recl rust on fittingno recl rust on fitting
Water Agingput at water in 85±2°C,
after 70h~72h 27.6MPa × 2min;
pressure raste 172.5±69MPa/min
burst>49h; whip>35h;
tensile≥1446N
>82MPa;>60h;
>2500N

Packing:

Supplied PVC bag in tasteful QDGY carton or "own brand"carton.

Delvery:

Qty/pcsDelivery Time/day
500~1,000Within 30 days
1,000~10,000Within 15 days
More than 10,000Within 20 days

Sample:

Free samples are available by freight collectwithin 7 days.

Warranty:

1.Quality:All products confirm SAE J1401 standard,and100% teseted before shipping.Safe for user.

2.Guarantee:3 years.Any technical problem will under maintenance.

Market:

OE quality DOT approved brake line

Main Products:

brake hose,brake hose assembly

brake line ,brake line kit

Teflon/PTFE S.S braided brake hose

Teflon/PTFE S.S braided brake line

Teflon/PTFE S.S braidd brake line kits

Air brake hose,air brake hose assembly

Female & male fitting ,banjo fitting,bolts & nuts.etc

Related matel accessory & rubber accessory

For a quick respon and quotation,kindly tell your OE Number,quantity,material request in your mail.

Any market request,any logo acceptable ,free sample,leave an inquiry to know more details about Price,Packing,Shipping and Discount.
