Product Details:
Payment & Shipping Terms:
|
| Material: | Rubber | Reinforcement: | One Layer Or Two Layer Wire Braided |
|---|---|---|---|
| Surface: | Cloth Or Smooth | Size: | 3/16~2 Inch |

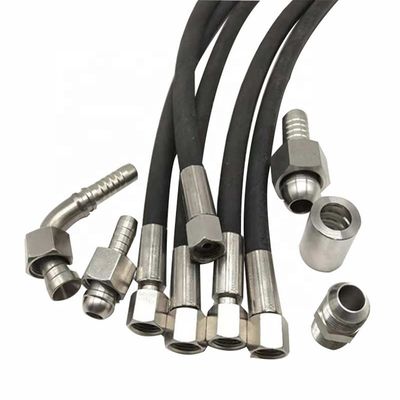

| Hose Assembly: | We Crimped The Assembly By Ourself | Hose And Fitting: | Produce Ourself |
| Sample: | Can Supply For Test |
SAE 100R1AT single steel wire braided hose is a typical medium pressure hydraulic hose and strongly recommended for hydraulic lines or general industrial system. It can bear higher working pressure than other rubber hoses thanks to its high tensile braided steel wire reinforcement. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, making the hose have excellent performance in delivering oils. The reinforcement is made from one layer of high tensile braided steel wire, making the hose have outstanding high pressure resistance. The cover is made from high quality synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, aging, sunlight and cut. Therefore, it has longer service life.
Hydraulic Rubber Hose SAE100 R1 Recommended For:
Medium pressure hydraulic hoses. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN.
Hydraulic Rubber Hose SAE100 R1 Application Fields:
Mine hydraulic support, oilfield extraction machinery, mine/road/construction machinery.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: single layer of steel wire braided
COVER: Black, oil resistant, synthetic rubber
SURFACE: wrapped surface,smooth surface
Hydraulic Rubber Hose SAE100 R1 TEMPERATURE RANGE: -40℃(-104℉) to +100℃ (+212℉)
Hydraulic Rubber Hose SAE100 R1 Standard: SAE 100 R1 AT

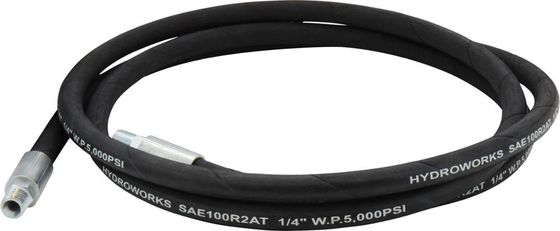

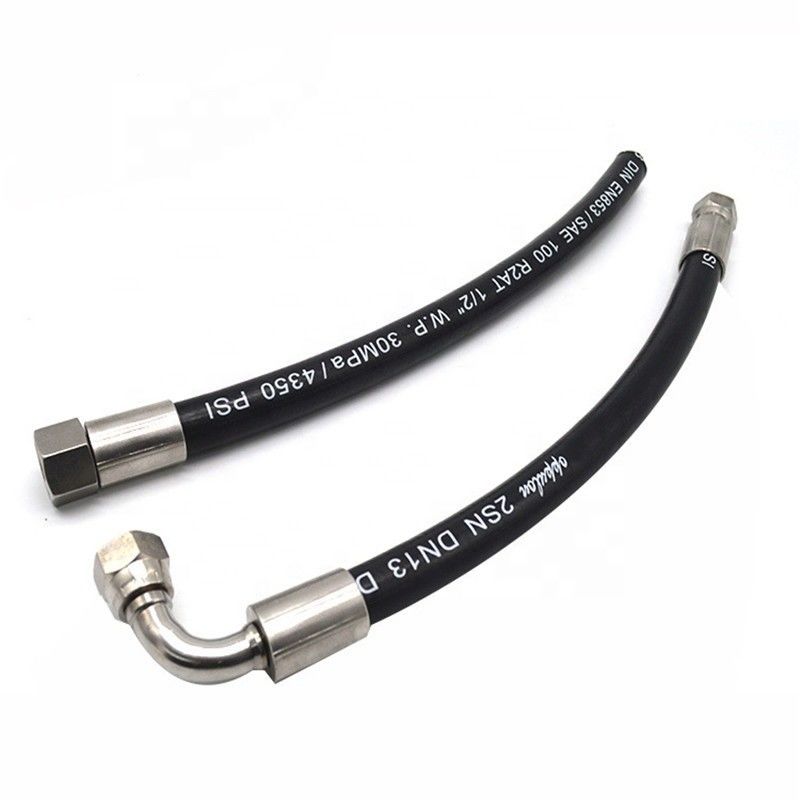

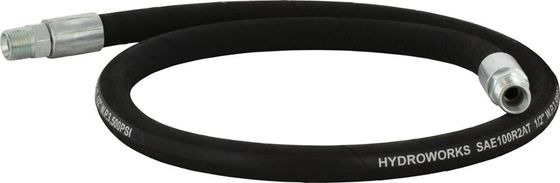

SAE 100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment. The cover is made from high quality synthetic rubber, which is resistant to weather, ozone, corrosion, abrasion, aging, sunlight and cut. The hose has longer service life as a result.
Hydraulic Rubber Hose SAE100 R2 Recommended For:
High-pressure hydraulic lines. Meets or exceeds the requirements of SAE 100R2AT performance requirements of EN853 2SN.
Hydraulic Rubber Hose SAE100 R2 Application Fields:
For high pressure hydraulic systems in industry and agriculture.
INNER TUBE: oil resistant synthetic nitrile rubber
REINFORCEMENT: two layers of steel wire braided
COVER: oil and weather resistant synthetic rubber
Working Temperature: -104℉ to +212℉ (-40℃ to +100℃)
SURFACE: wrapped surface,smooth surface
Hydraulic Rubber Hose Standard: SAE 100 R2 AT
The characteristics of hydraulic rubber hose (QDGY)
1.High pressure resistance
2.High temperature resistance
3.Soft and portable
4.Deformation resistant
5.Beautiful appearance
6.Striated, smooth or cloth surface
7.Good Insulation and abrasion resistance
8.Steel wire braided or spiraled layers reinforcement
9.Durable with high quality
10.Free sample
11.Fast delivery
12.Temperature Range:-40°C To +100°C (-40°F To +212°F)
