QDGY flexible brake hose

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

QDGY flexible brake hose

China QDGY flexible brake hose supplier
QDGY flexible brake hose supplier QDGY flexible brake hose supplier QDGY flexible brake hose supplier QDGY flexible brake hose supplier QDGY flexible brake hose supplier

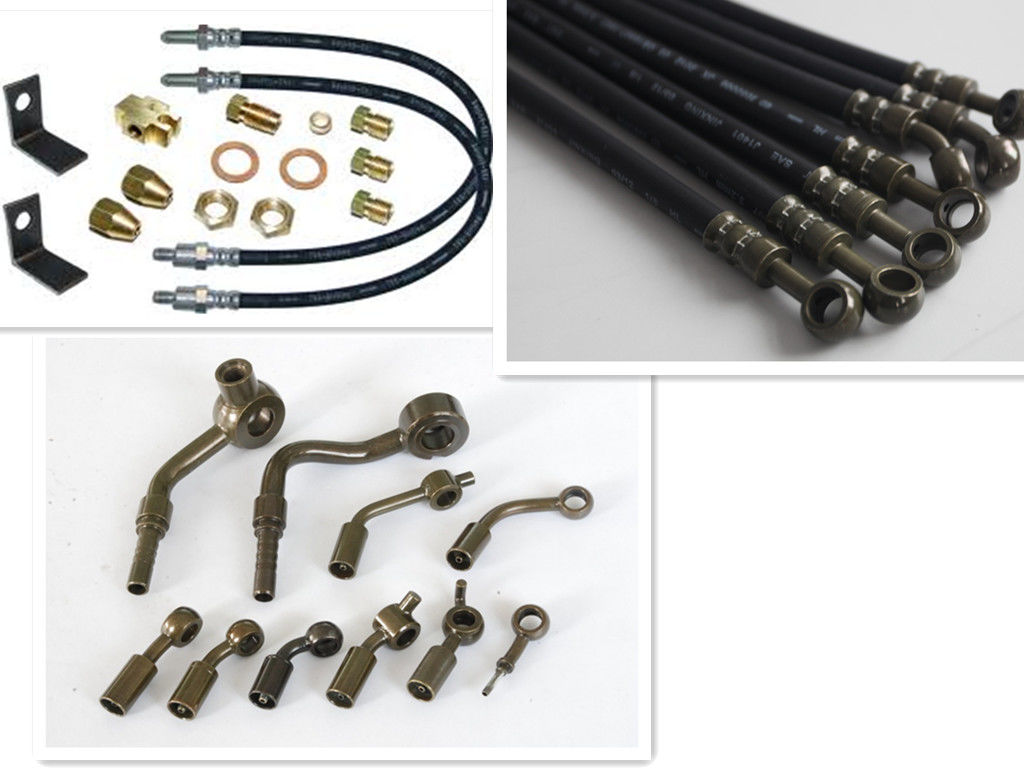

Large Image :  QDGY flexible brake hose

Product Details:

Place of Origin: China
Brand Name: QDGY
Certification: TS16949,ISO9001,SAE J1401,FMVSS106
Model Number: GSG111

Payment & Shipping Terms:

Price: NEGOTIABLE
Packaging Details: 200METERS PER CARTON
Delivery Time: within 15days
Payment Terms: T/T,L/C
Supply Ability: 9000,000 meters per month
Minimum Order Quantity: 500meters
Contact Now
Detailed Product Description
High Light:

brake hose

,

flexible brake hose

,

QDGY flexible brake hose

QDGY flexible brake hose
Material: EPDM
application: bake system

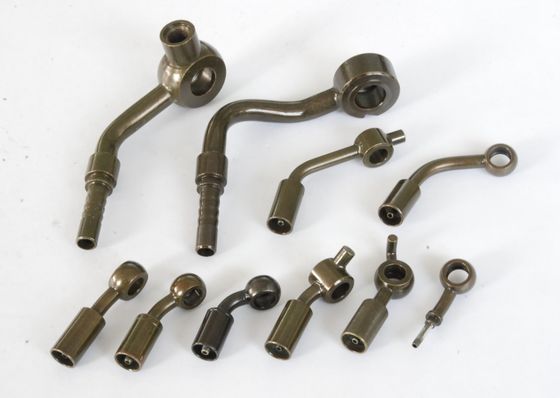

brake hose assemlby1

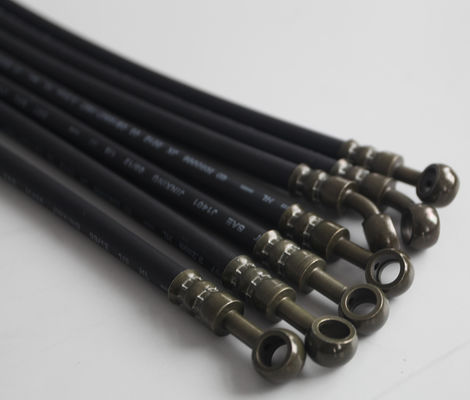

QDGY flexible brake hose

Feature:



Low expansion coefficient;



Aging resistant,;



Corrosion resistant;



High and low temperature resistance.



The hoses are braided with hign strength,manifold



have such very good performances as the following



good flexibility bursting resistance



hign tensile strength



low swell increment of the internal volume



ozone resistance



low-temperatance



benging resistance



good compatibility



with stable



safe andreliable braking effects



Be used for transfer pressure for all car's hydraulic brake system. Exported to U.S., U.K., A.U., Brazil etc..



Size:3.2mm * 10.5mm



Material: EPDM



Application: Brake System



Certificate: DOT SAE J1401,FMVSS106, TS16949 brake hose



OEM : Available



Aftermarket: Available







Working temperature range: -40~+100
Standard:SAE J1401 GB16897-1997 MS263-49







Details:



uses

ID

OD

W.P

B.P

W.T

In

mm

mm

BAR

PSI

BAR

PSI

g/m

brake system

1/8

3.2

10.5

276

4000

490

7100

91

3/16

5

13

276

4000

345

5000

129







Test report:



Flex Whip Test

Maintain 1.55-1.72Mpa

35hr, No Pressure Reduction and Leakage

80hr

Ozone Test

100pphm×70hr×40+3°C,Inspect With 7× Magnifying Glass

No Crack

No Crack

Cold Bend Test

-45°C~-48°C×72hr,3-5s,bending 180°

No Crack or Rupture

No Crack or Rupture

Salt Spray Test

5% NaCl for 24 hr,and Clean With 35°C Water

No Red Rust on Fittings

No Red Rust on Fittings

Water Aging

Submerge Hose in Water of 85±2°C for 70~72hr under 27.6Mpa×2min;Pressure Rate 172.5±69Mpa/min

Burst Test>49Mpa

Bust Test>90Mpa

Whip Test>35hr

Whip Test>60hr

Tensile Test>1446N

Tensile Test>2400N



Safety system



Testing room



Warehouse control



database management





Welcome to visit!




Packaging & Shipping
