copper coated double wall type steel pipe bundy tube 3/16(4.76mm)

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

copper coated double wall type steel pipe bundy tube 3/16(4.76mm)

China copper coated double wall type steel pipe bundy tube 3/16(4.76mm) supplier

Large Image :  copper coated double wall type steel pipe bundy tube 3/16(4.76mm)

Product Details:

Place of Origin: China
Brand Name: QDGY
Certification: TS16949,ISO9001,SAE J1401,FMVSS106
Model Number: GSG

Payment & Shipping Terms:

Minimum Order Quantity: 1TON
Price: NEGOTIABLE
Packaging Details: 200METERS PER CARTON
Delivery Time: WITHIN 1 MONTH
Payment Terms: T/T,L/C, T/T, L/C
Supply Ability: 9000,000 meters per month
Minimum Order Quantity: 500meters
Detailed Product Description
Material: Steel Material,iron Material Color: Copper Coating,white Zinc Coating,yellow Zinc Coating,PVF
SIZE: 4.76MM (3/16),6.35MM(1/4),8MM,9.53MM,12.7MM Wall Thickness: 0.7mm

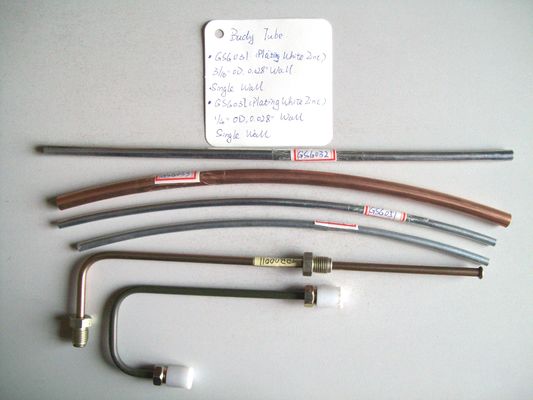

copper coated single wall type steel pipe bundy tube 3/16(4.76mm)





copper coated Brake Line Tubing Kit 3/16 O.D. x 25 ft Coil w 15 3/16 fittings



copper coated double wall type steel pipe bundy tube 3/16(4.76mm)



copper coated double wall type steel pipe bundy tube 3/16(4.76mm)copper coated double wall type steel pipe bundy tube 3/16(4.76mm)copper coated double wall type steel pipe bundy tube 3/16(4.76mm)













brake tube

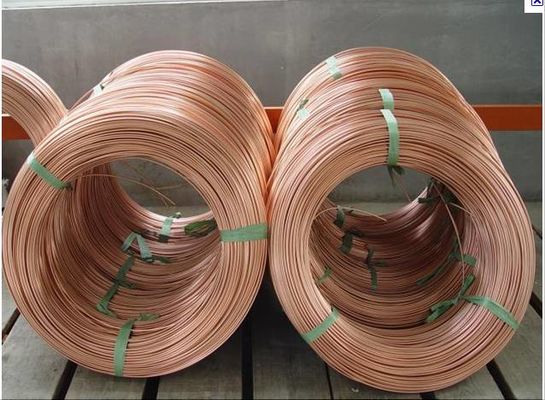

Double wall brazed tube is coated copper on the both sides of the steel strip ,and brazed 720



  • Main Characteristics:
  • 1.Fine inside cleanness ,high strength and nice elongation
  • 2.Good fundation for after-process,anti-leakage.
  • 3.Anti-high pressure explosion and excellent anti-corrosion properly after surface treatment.
  • The tubes can be provided in coils or cut-to length with any length according to the
  • requirements from customers
  • 4. The tube is used for auto braking system and power steering system and so on
O.D(mm) Thickness(mm) Min Burst Pressure(Mpa) Elongation inside clearness(g/ m³) O.B(Mpa) O.S(Mpa)
4.00

0.51

  ≥25 ≤0.16 ≥290 ≥180
4.76 0.70 110 ≥25 ≤0.16 ≥290 ≥180
6.00 0.70 85 ≥25 ≤0.16 ≥290 ≥180
6.35 0.70 78 ≥25 ≤0.16 ≥290 ≥180
8.00 0.70 67.5 ≥25 ≤0.16 ≥290 ≥180
10.00 0.70 55 ≥25 ≤0.16 ≥290 ≥180
12.00 0.70 32 ≥25 ≤0.16 ≥290 ≥180

Plated surface treatment :

  Color Zinc Plating Oilve Green White zinc PVF
O.D 4.76,6,6.35,8,10,12
Tensile strength 290Mpa 290Mpa 290Mpa 290Mpa
Yield Strength 180Mpa 180Mpa 180Mpa 180Mpa
Elongation 25% 25% 25% 25%
Salt spray Test: 192h 216h 144h 1000h





Related Products

copper coated double wall type steel pipe bundy tube 3/16(4.76mm)







Available Material

Fitting Type

Female ,Male fitting,Banjo fitting,Bolt and Nuts,Welding fitting,Special fitting,brake adapter fitting...

Thread Measure

M10x1,M10x1.25,M11x1.25M12x1,M12x1.25,M20x1.25...

1/8NPT,1/2NPT,1/8x28BSPP,1/4x19 BSPP,1/2x14 BSPP,3/8x19 BSPP...

G1/8,1/8BSPT...

318x24,7/16x20,7/16x24,3/8x19...

Fitting Angle

0,10,15,20,25,30,35,40,45,50,55,60,70,90...

Fitting Material

Steel ,Stainless Steel,Brass,Aluminum...

Fitting Surface

Yellow zinc,White zinc,Green zinc,Nickel,Chrome,Zn-Ni Alloy

copper coated double wall type steel pipe bundy tube 3/16(4.76mm)





Main Product

Main Products:

brake hose,brake hose assembly

brake line ,brake line kit

Teflon/PTFE S.S braided brake hose

Teflon/PTFE S.S braided brake line

Teflon/PTFE S.S braidd brake line kits

Air brake hose,air brake hose assembly

Female & male fitting ,banjo fitting,bolts & nuts.etc

Related matel accessory & rubber accessory

brake hose fittings,male fitting,female fitting,banjo fittings,banjo bolt,

hose connector and joints



For a quick respon and quotation,kindly tell your OE Number,quantity,material request in your mail.

Any market request,any logo acceptable ,free sample,leave an inquiry to know more details about Price,Packing,Shipping and Discount.





Packaging & Shipping

Packaging:

QDGY common package: PVC bag in carton box with QDGY logo

Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package.



Lead time:

For fitting: common fitting within 30 days;special fitting within 40 days.

For brake hose: wihithin 20 days.

For brake hose assembly: within 40 days.

Please noted: Exact lead time is based on details order ,please contact with us for the details information.

Shipping:

Qingdao port(Chingtao port) is only about 30 minitues from our factory.

Qingdao airport is only about 40 minitues .

Conveniently by air or by ocean with cheaper freight fee.







FAQ

Q1: Waht kinds of main rubber hose can product?

A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,teflon brake hose,teflon s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...

Q2: What size of brake hose can you supply?

A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")

Special size: 3.2x11mm...or your request size

Q3: Can you print the words(line) as our requirement?

A: Yes,we do provide embossed and printing marking with different color ,as your requirement.

Q4: What kinds of fitting can product?

A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...

Q5: How many types of brake hose do you product?

A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...

Q6: What is my order's delivery date?

A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,we will reply you within 24 hours.
