crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

China crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies supplier
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies supplier crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies supplier crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies supplier crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies supplier

Large Image :  crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

Product Details:

Place of Origin: china
Brand Name: QDGY
Certification: TS16949,DOT SAE J1402,FMVSS106
Model Number: GSGX-90A

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 100
Packaging Details: 1pcs per carton
Delivery Time: WITH IN 7 DAYS
Payment Terms: T/T,L/C
Supply Ability: MORE THAN 1000 SET PER MONTH
Minimum Order Quantity: 1 SET
Contact Now
Detailed Product Description
SIZE ID: 6MM-51MM Mold Crimping Force: 300MT
Motor Power: 3KW Power Source: 380V(220V)
Weight: 350KGS Diamention: 650mm*500mm*1350mm



QDGY brand hydraulic hose crimping machine

QDGY brand hydraulic hose crimping machine is produced by Qingdao Guosong Machinery Parts Co.,Ltd, which was established on 1998. We had exported our products to more than 50 countries. We certivicated in ISO90001 and TS16949 Quality management.



Quick Details

Condition:
New
Place of Origin:
Shandong China (Mainland)
Brand Name:
QDGY
Model Number:
X-90B
Voltage:
220V/380V
Power(W):
3000W
Dimension(L*W*H):
700X500X1300
Weight:
350KGS
Certification:
ISO/TS16949
Warranty:
one years
After-sales Service Provided:
No overseas service provided
HOSE O.D:
51mm max
usually mold ID:
14MM-68MM
motor power:
3kw
oil pump pressure:
31.5mpa
weight:
350
model:
k02/x-90a/x-90
standard:
SAE J1401
certificate:
ISO 9001-20000
package:
standard export package
drawing:
supply our company for your check
Crimping machine
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies
No.
X-90B
Applicable
Engineering machinery,industry devicem,auto part hose
Hose diameter
≤2"
Oil Pump Pressure
31.5Mpa
Motor Power
3KW
Mold Crimping force
300MT
Voltage
380V/220V
Plug-type
Three-wire
Efficiency
6Pcs/M
Tolerance
0.02
Crimping control
Foot switch
Molds diameter
∮14-∮68 ( 12 sets)
Weight
350kg
Dimension(LxWxH)
700 X 500 X 1300
Advance
With hose assembly pressure test function.
QDGY products
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies
Machinery Detailed
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

Crimping machine necking down:

crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

1/8' rubber brake hose (3.2X10.5)

18' Stainess steel braided hose(3.2X6.5)

3/16' rubber brake hose (4.8X12.5)

Hose diameter
Fitting sleeve before crimped
Fitting sleeve after crimped
1/8' rubber brake hose (3.2X10.5)
13.5
10.2±0.2
3/16' rubber brake hose (4.8X12.5)
15.5
12.2±0.2
18' Stainess steel braided hose (3.2X6.5)
10
8-8.5
3/16' Stainliess steel braided hose (4.8X8)
11
9-10

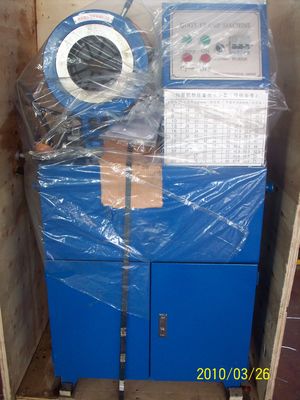

machine package
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies
Chrimping machine package:

1.Machine is winded by plastic film;

2.12 sets mold are packaed in the machine box at the bottom of machine;

3.One set machine in one wooden box.

4.Wooden box diameter(LxWxH):700 X 500 X 1300(mm)

5.Gross weight:350kg





machine Service
1.The diameter of fitting before and after crimping are only for reference.
2.The Mold type can be made according to customer demand.
3.Choosing machine type according to your hose diameter often crimped.
4.Fitting sleeve diameter before crimped &after crimped as following attachecd file.

.

machine factroy
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

1. Production equipment imported from Japan

2.Highly skilled technical workers

3.Precision testing equipment

4.Adequate inventory

5.Efficient delivery

Certifications
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould diescrimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

ISO/TS16949:2009

ISO9001:2000

DOT

Contact with Rita
crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

Click to contact with me

Qingdao Guosong Machinery Parts Co., Ltd
Address:#16-1-301 Huada Mansion No.6 Yaner Dao RD. Qingdao, 266071, China
Tel: +86-0532-85779141 | Fax: +86-0532-85760225 Cell: 86-15066792971
skype:qdgyrita |



Packaging

Selling Units: Single item
Single package size: 70X50X130 cm
Single gross weight: 350.0 KG

crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies

crimping die 1/8"-2" 6mm-51mm high pressure hydraulic brake hose crimping pressing machine with 12 sets free mould dies



The details of hydraulic hose crimping machine:

No.

X-90A

Applicable

Engineering machinery,industry devicem,auto part hose

Hose diameter

1/4"- 2"

Oil Pump Pressure

31.5Mpa

Motor Power

3KW

Mold Crimping force

300MT

Voltage

380V/220V

Plug-type

Three-wire

Efficiency

6Pcs/M

Tolerance

0.02

Crimping control

Foot switch

Molds diameter

14-68 ( 12 sets)

Weight

350kg

Dimension(LxWxH)

700 X 500 X 1300

Advance

With hose assembly pressure test function.

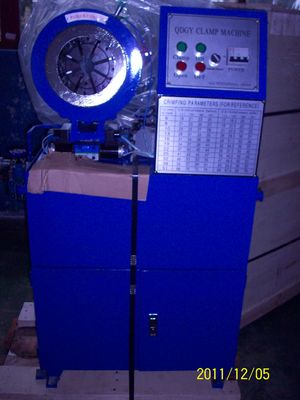

The machine is hydraulic hose crimping hose:



The mold of the machine

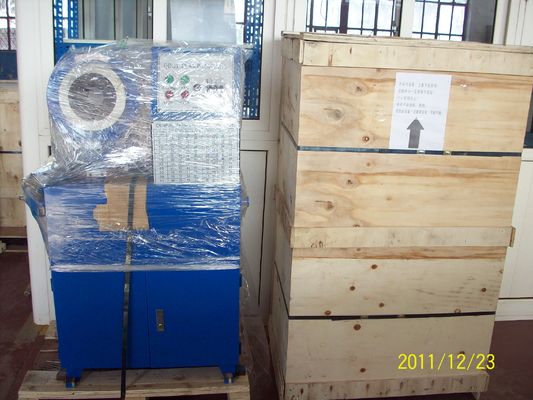

The packing of hydraulic hose crimping machine:





More details, welcome to contact with us, and welcome to visit our factory.
