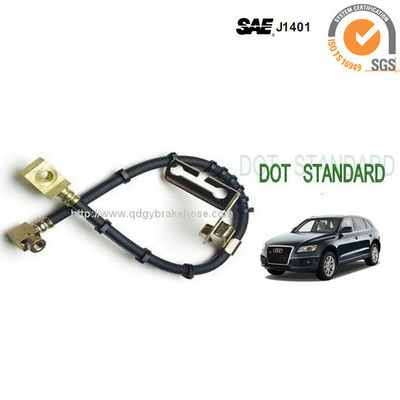

Rear Lower Right Side Brake Hose

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

Rear Lower Right Side Brake Hose

China Rear Lower Right Side Brake Hose supplier
Rear Lower Right Side Brake Hose supplier Rear Lower Right Side Brake Hose supplier Rear Lower Right Side Brake Hose supplier

Large Image :  Rear Lower Right Side Brake Hose

Product Details:

Place of Origin: China
Brand Name: QDGY
Certification: TS16949,ISO9001,SAE J1401,FMVSS106
Model Number: GSG111

Payment & Shipping Terms:

Price: NEGOTIABLE
Packaging Details: 200METERS PER CARTON
Delivery Time: within 15days
Payment Terms: T/T,L/C
Supply Ability: 9000,000 meters per month
Minimum Order Quantity: 500meters
Contact Now
Detailed Product Description
High Light:

brake hose

,

flexible brake hose

,

QDGY flexible brake hose

QDGY flexible brake hose
Material: EPDM
application: bake system

brake hose assemlby1

Brake hose 2(1)

Rear Lower Right Side Brake Hose

with stable

safe andreliable braking effects

Be used for transfer pressure for all car's hydraulic brake system. Exported to U.S., U.K., A.U., Brazil etc..

Size:3.2mm * 10.5mm

Material: EPDM

Application: Brake System

Certificate: DOT SAE J1401,FMVSS106, TS16949 brake hose

OEM : Available

Aftermarket: Available

Working temperature range: -40~+100
Standard:SAE J1401 GB16897-1997 MS263-49

Details:

uses

ID

OD

W.P

B.P

W.T

In

mm

mm

BAR

PSI

BAR

PSI

g/m

brake system

1/8

3.2

10.5

276

4000

490

7100

91

3/16

5

13

276

4000

345

5000

129

Test report:

Flex Whip Test

Maintain 1.55-1.72Mpa

35hr, No Pressure Reduction and Leakage

80hr

Ozone Test

100pphm×70hr×40+3°C,Inspect With 7× Magnifying Glass

No Crack

No Crack

Cold Bend Test

-45°C~-48°C×72hr,3-5s,bending 180°

No Crack or Rupture

No Crack or Rupture

Salt Spray Test

5% NaCl for 24 hr,and Clean With 35°C Water

No Red Rust on Fittings

No Red Rust on Fittings

Water Aging

Submerge Hose in Water of 85±2°C for 70~72hr under 27.6Mpa×2min;Pressure Rate 172.5±69Mpa/min

Burst Test>49Mpa

Bust Test>90Mpa

Whip Test>35hr

Whip Test>60hr

Tensile Test>1446N

Tensile Test>2400N

Rear Lower Right Side Brake Hose
vw breather hose
sae j30 r6hose

Rear Lower Right Side Brake Hose

QDGY is a professional producer for brake hoses, and is a leading manufacturer in China nowWe have certificated ISO9001 & TS16949, and DOT approved. With advanced R&D lab and strict quality control system, our products are guaranteed to meet SAE J1401 and FMVSS-106 standards.

Rear Lower Right Side Brake Hose

Rear Lower Right Side Brake Hose

Parts No.

Size

Market

Burst pressure

Length/pc

weight/M

GSG111

3.2mm X 10.5mm

1/8 HL

OEM

≥75Mpa

10-30m

100g

GSG001AL

3.2mm X 10.5mm

1/8 HL

OEM & Aftermarket

≥70mpa

10-15m

99g

GSG003AL

3.2mm X10.5mm 1/8 HL

Aftermarket

≥60Mpa

10-15m

100g

GSG005

4.8mm X 12.5mm 3/16"

OEM & Aftermarket

≥60Mpa

6-15m

150g

.Every brake hose, brake hose assembly and brake hose end fitting with which a passenger car, multi-purpose passenger vehicle, truck, bus, three-wheeled vehicle, motorcycle, trailer, and trailer converter dolly are equipped shall conform to the requirements of Technical Standards Document No. 106, Brake Hoses (TSD 106), as amended from time to time

Brake hose as follows: brake hose, brake oil, hydraulic brake hose, high pressure pipe, oil brake pipes, hydraulic brake hose, hydraulic hose, tubing hose, trachea, etc., can also random models with Toyota, Honda, Mitsubishi, BMW, Audi, Nissan, Opel, etc. in front. Usages: used in a variety of motorcycles, cars, multi-functional commercial vehicle, light trucks and other vehicles hydraulic brake system, hydraulic system for power transmission. Characteristics: low inflation, anti-burst, high temperature resistance, ozone resistance, low moisture permeability, fatigue resistance and excellent pulse performance, the braking effect is stable, secure and reliable. (1) brake hose specifications are as follows: 1 / 8 "HL, 3.2 * 10.5mm, 3 / 16" HL, 4.8 * 12.5mm (2) joints: a variety of different shapes, there are metric thread, the United States and British (3) assembly: the code can be based on OEM and customer drawings production.

Hose Discription

Rear Lower Right Side Brake HoseRear Lower Right Side Brake Hose

Rear Lower Right Side Brake Hose

Rubber Brake Hose Specifications:

Inner DiameterOuter DiameterOuter layerDouble braidInner layer
1/8" (3.2mm)0.413" (10.5mm)EPDMPVAEPDM
3/16" (4.8mm)

0.492" (12.5mm)

Rubb Brake Hose Features:

  • Two braid PVA reinforced hose
  • Meets FMVSS-106 and SAE J1401 specifications
  • Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
  • Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
  • Temperature range -50°C to 121°C
  • Compatible with DOT3,DOT4 and DOT4+ brake fluides

Application:

For use in braking system of the vehicle.

Technical Specification:

Test Items
Test Condition
Standard
Test Results
ID
Normal
3.2mm
3.15~3.45mm
OD
Normal
10.5mm
10.30~10.70mm
Expansion
1000psi
0.33cc/ft max.
0.14~0.16cc/ft
1500psi
0.42cc/ft max.
0.20~0.22cc/ft
2900psi
0.61cc/ft max.
0.41~0.43cc/ft
Burst

4000psi×2min;pressure rated 25,000±10,000psi/min

>7000psi No seepage
>10,500psi
Whip
235~250psi
>35h
>70h
Tensile
tensile speed:218±3mm/min
>1446N
2400N
Cold Bend
-45°C ~-48°C× 72h, 3-5s,bending180°
No cracking
No cracking
Ozone
100pphm×70h×40°C, 7X
No cracking
No cracking
Impulse
146°C 1±0.1min at 1600psi+70
>7000psi No crack
>7500psi
Compatibility
120°C × 70h
>7000psi No seepage
>8800psi
Salt Spray
5%NaCl, 24h,water cleanout in 35°C
No red rust
No red rust
Water Aging
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
>7000psi; >35h; >1446N
>10250psi;>60h; >2200N

Main Product

---Main Products---

brake hose,brake hose assembly

brake line ,brake line kit

rubber brake hose,fitting,assembly

/PTFE S.S braided brake hose

/PTFE S.S braided brake line

/PTFE S.S braidd brake line kits

Air brake hose,air brake hose assembly

bundy steel tube and assembly

Female & male fitting ,banjo fitting,bolts & nuts.etc

Related matel accessory & rubber accessory

brake hose fittings,male fitting,female fitting,banjo fittings,banjo bolt,

hose connector and joints

For a quick respon and quotation,kindly tell your OE Number,quantity,material request in your mail.

Any market request,any logo acceptable ,free sample,leave an inquiry to know more details about Price,Packing,Shipping and Discount.

Our Services

---Our Service---:

Sample:

Free samples are available by freight collectwithin 7 days.

Warranty:

1.Quality:All products confirm SAE J1401 standard,and100% teseted before shipping.Safe for user.

2.Guarantee:3 years.Any technical problem will under maintenance.

Market:

Rear Lower Right Side Brake Hose

Delvery:

Qty/pcs

Delivery Time/day

500~1,000

Within 30 days

1,000~10,000

Within 15 days

More than 10,000

Within 20 days

Company Information

---COMPANY INFORMATION---

Rear Lower Right Side Brake Hose

Qingdao Guosong Machinery Parts Co.,Ltdfirst began brake hose & fitting & assembly operations in China in 1996.The premier OEM's rely on the service ,quality and performance of the brake hose assemblies.QDGY has the capability to design and provide complete validation testing to the customers requirements.

FAQ

---FAQ---

Q1: Waht kinds of main rubber hose can product?

A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose, brake hose, s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...

Q2: What size of brake hose can you supply?

A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")

Special size: 3.2x11mm...or your request size

Q3: Can you print the words(line) as our requirement?

A: Yes,we do provide embossed and printing marking with different color ,as your requirement.

Q4: What kinds of fitting can product?

A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...

Q5: How many types of brake hose do you product?

A: Brake hose, braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...

Q6: What is my order's delivery date?

A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.
