1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

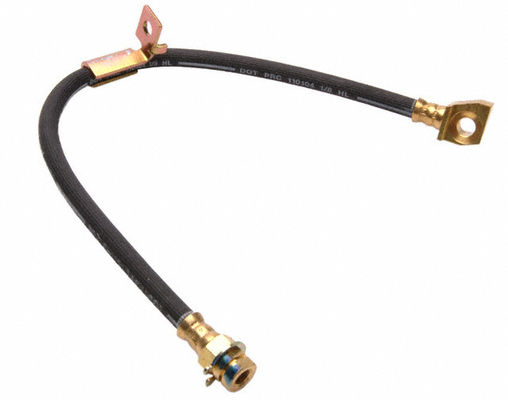

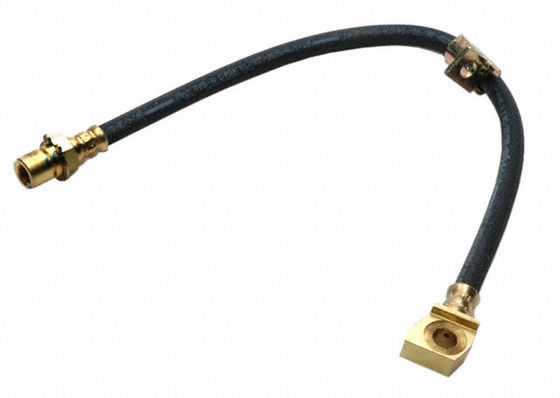

1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting

China 1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting supplier
1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting supplier 1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting supplier 1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting supplier

Large Image :  1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting

Product Details:

Place of Origin: CHINA
Brand Name: QDGY
Certification: TS16949,DOT SAE J1402,FMVSS106
Model Number: GSG

Payment & Shipping Terms:

Minimum Order Quantity: 1000meters
Price: USD1.00/Meter
Packaging Details: 200PCS/CARTON
Delivery Time: WITH IN 7 DAYS
Payment Terms: T/T,L/C
Supply Ability: MORE THAN 350000PCS PER MONTH
Minimum Order Quantity: 500PCS
Detailed Product Description
Material: EPDM+PVA+EPDM+PET+EPDM Size: 1/8,3.2mm *10.5mm
Burst Pressure: 72Mpa Printing: White Printing Words,can Add Your Brand Logo
End Fitting: Yellow Zinc Coating Fitting Material: Steel Material
High Light:

dot sae j1401 brake hose

,

brake hose

,

sae j1401 brake hose





ot fmvss106 approved brake hydraulic hose catalog



Hose Discription

--- Product Description --- www.qdgybrakehose.com

dot fmvss106 approved brake hydraulic hose catalog

dot fmvss106 approved brake hydraulic hose catalog

Rubber Brake Hose Specifications:

Inner Diameter Outer Diameter Outer layer Double braid Inner layer
1/8" (3.2mm) 0.413" (10.5mm) EPDM PVA EPDM
3/16" (4.8mm) 0.492" (12.5mm)

Rubber Brake Hose Features:

  • Two braid PVA reinforced hose
  • Meets FMVSS-106 and SAE J1401 specifications
  • Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
  • Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )
  • Temperature range -50°C to 121 °C
  • Compatible with DOT3,DOT4 and DOT4+ brake fluides Rubber Brake Hose Advantages

Rubber Brake Hose Advantages:

  • Built to DOT and SAE automotive industry quality and safety standards.
  • Hoses constructed of EPDM rubber and PVA braid, offering high dynamic strength and chemical & thermal resistance

  • Brake Hoses with banjo end fittings are packaged with new copper washers to assure proper sealing.

  • Brake Hoses tested up to 4,000 PSI without rupture based on burst test




Application:

For use in braking system of the vehicle.

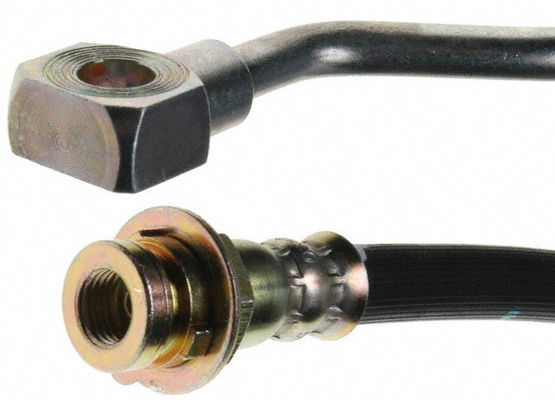

Detail image:



dot fmvss106 approved brake hydraulic hose catalogdot fmvss106 approved brake hydraulic hose catalogdot fmvss106 approved brake hydraulic hose catalog











Detail information:

1> PVA+PE inforcement Rubber brake hose with 3 layer epdm ,,or as your request material

2> one end is female fitting for SAE J1401 1/8 hydraulic brake hose repair kits cable

3> The other end is female fitting for SAE J1401 1/8 hydraulic brake hose repair kits cable

4> End fitting maerial:Q235

5>End fitting Surface treatment: White/Yellow/Olive Green, Chrome3+/6+, Zinc-Nickel, etc.
6>. Feaure: Acid, alkali,oil resistant; High accuracy; bright and clean.
7> Others: other fittings can be made according to drawing or new design







Related Products

Relate Product : www.qdgybrakehose.com

dot fmvss106 approved brake hydraulic hose catalog dot fmvss106 approved brake hydraulic hose catalog





dot fmvss106 approved brake hydraulic hose catalog dot fmvss106 approved brake hydraulic hose catalog





Packaging & Shipping

Packaging: www.qdgybrakehose.com



QDGY common package: PVC bag in carton box with QDGY logo

Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package.





Lead time: www.qdgybrakehose.com

For fitting: common fitting within 30 days;special fitting within 40 days.

For brake hose: wihithin 20 days.

For brake hose assembly: within 40 days.

Please noted: Exact lead time is based on details order ,please contact with us for the details information.

Shipping: www.qdgybrakehose.com

Qingdao port(Chingtao port) is only about 30 minitues from our factory.

Qingdao airport is only about 40 minitues .

Conveniently by air or by ocean with cheaper freight fee.

dot fmvss106 approved brake hydraulic hose catalog

Testing Euipment

Testing Equipment & Test report:

1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting

Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.



Test Items
Test Condition
Standard
Test Results
ID
Normal
3.2mm
3.15~3.45mm
OD
Normal
10.5mm
10.30~10.70mm
Expansion
1000psi
0.33cc/ft max.
0.14~0.16cc/ft
1500psi
0.42cc/ft max.
0.20~0.22cc/ft
2900psi
0.61cc/ft max.
0.41~0.43cc/ft
Burst

4000psi×2min;pressure rated 25,000±10,000psi/min

>7000psi No seepage
>10,500psi
Whip
235~250psi
>35h
>70h
Tensile
tensile speed:218±3mm/min
>1446N
2400N
Cold Bend
-45°C ~-48°C× 72h, 3-5s,bending180°
No cracking
No cracking
Ozone
100pphm×70h×40°C, 7X
No cracking
No cracking
Impulse
146°C 1±0.1min at 1600psi+70
>7000psi No crack
>7500psi
Compatibility
120°C × 70h
>7000psi No seepage
>8800psi
Salt Spray
5%NaCl, 24h,water cleanout in 35°C
No red rust
No red rust
Water Aging
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
>7000psi; >35h; >1446N
>10250psi;>60h; >2200N




Company Information

---Company Information--- www.qdgybrakehose.com



Qingdao Guosong Machinery Parts Co.,Ltd first began brake hose & fitting & assembly operations in China in 1996.The premier OEM's rely on the service ,quality and performance of the brake hose assemblies.QDGY has the capability to design and provide complete validation testing to the customers requirements.

We offer the most comprehensive assortment of brake hoses and PA and plating coated steel line in the industry. In addition, we offer a complete line of fittings and unions to complete the job.

QDGY factory is the professional manufacturer of rubber brake hose,stainless steel braided brake hose,all kinds of fitting,brake hose assembly,bundy tube,and all kinds of accessory.
Welcome to visit our website:www.qdgybrakehose.com

dot fmvss106 approved brake hydraulic hose catalogdot fmvss106 approved brake hydraulic hose catalog

QDGY factory is the professional manufacturer of rubber brake hose,stainless steel braided brake hose,all kinds of fitting,brake hose assembly,bundy tube,and all kinds of accessory.

SAE J1401 brake hose:

3.2x10.5mm rubber brake hose

4.8x12.5mm DOT approved brake hose

brake hose:

3.2x7.5mm -3AN braid brake hose

3.2x6.5mm stainless steel braid brake line

4.8x8.0mm -4AN brake line

Steel tube:

3/16" steel pipe

1/4" bundy pipe

3/8" bundy tube

5/16" steel tube..single wall bundy tube

OE No. rubber brake hose assembly, brake line kits,bundy tube assembly

Accessory:

Rubber accessory,steel accessory,plasitc accessory.

How to Contact Us:

Sales Manager : Rita He
empolder(at)qdgybrakehose.com
Qingdao Guosong Machinery Parts Co.,Ltd
#16-1-301 Huada Mansion,No.6 Yaner Dao RD,266071,Qingdao China
Tel: +86-532-85779141 Fax: +86-532-85760225
Cell Phone: +86-15066792971

MSN: qdgy_rita(at)hotmail.com Skype: qdgyrita
Website:http://www.qdgybrakehose.com
alibaba website: http://www.qdgybrakehose.cn

QDGY is resourceful for brake hose,brake hose fittings and banjo bolts and nuts ! welcome you to visit our company website or Alibaba homepage !

Welcome to visit our website:www.qdgybrakehose.com





Certifications

CERTIFICATE:

dot fmvss106 approved brake hydraulic hose catalog

ISO/TS 16949 ISO9001 DOT Certification



FAQ

----- FAQ -----

Q1: Waht kinds of main rubber hose can product?

A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose, brake hose, s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...

Q2: What size of brake hose can you supply?

A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")

Special size: 3.2x11mm...or your request size

Q3: Can you print the words(line) as our requirement?

A: Yes,we do provide embossed and printing marking with different color ,as your requirement.

Q4: What kinds of fitting can product?

A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...

Q5: How many types of brake hose do you product?

A: Brake hose, braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...

Q6: What is my order's delivery date?

A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.

Any requirement ,kindly contact Rita He





carbrake hose

QDGY brand brake system brake hose

1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting



The company specializes in producing hydraulic rubber hose, SAE & DIN Series, auto hose series, brake hose,hydraulic hose,air brake hose,hydraulic brake hose,wire braid hydraulic hose,multi spiral hydraulic hose,brake hose assemblies,oil cooler hose,external wire braided rubber hose,wire braided steam hose,textile oil gas hose,fibre braided hydraulic hose,high braided rubber resin hose, metal hose, hose,brake hose assemblies,hose fittings, conveyor belts, etc.Our products are exported to more than 30 countries, e.g. USA, UK, Germany, Korea, Russia, Iran, India, Pakistan, Kuwait, Brazil, Argentine, Venezuelan, Indonesia, Malaysia, and so on



1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting



Hydraulic Brake Systems are requested high reliability for braking security of car and motorcycle. Hydraulic Brakes Hose is especially used in an important part to follow the movement of rolling or steering.

Our hose performance meets the requirements of FMVSS No.106, SAE J 1401 and JIS D2601

1/8 size low expansion dot SAE J1401 fmvss106 approved car OEM brake hydraulic hose assembly with M10X1 end fitting



Every brake hose, brake hose assembly and brake hose end fitting with which a passenger car, multi-purpose passenger vehicle, truck, bus, three-wheeled vehicle, motorcycle, trailer, and trailer converter dolly are equipped shall conform to the requirements ofTechnical Standards Document No. 106, Brake Hoses(TSD 106), as amended from time to time
