TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

Good quality stainless steel braided hose for sales
Good quality stainless steel braided hose for sales
I'm Online Chat Now

TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

China TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts supplier

Large Image :  TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

Product Details:

Place of Origin: CHINA
Brand Name: QDGY
Certification: DOT SAE J1401 FMVSS106,TS16949,ISO9001 ...
Model Number: GSG111

Payment & Shipping Terms:

Minimum Order Quantity: 500
Price: USD0.80/PC
Packaging Details: 50X30X20 EXPORTED CARTON INTO PALLET
Delivery Time: 7 WORKING DAYS
Supply Ability: 9000000PCS PER YEAR
Detailed Product Description
SIZE: 3.2MM * 10.5MM Material: EPDM
Color: Black Surface, White Printing Words End Terminal Fittings: Male,female ,banjo ,special,bolt And Nut And So On
Length: Any Length You Want Fitting Material: Carbon Steel,stainless Steel,alumnium,brass
Fitting Surface Treatment: Yellow Color Zinc Coated,galanized White Zinc Coated,pvf,green Olive Accessories: Normal Accessories That All We Have
Standard: DOT FMVSS106 SAE J1401 1/8 Or 3/16 Brake Hose Assembly OEM: Available
Aftermarket: Available Test: Burst Pressure Test



Product Description
TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts
TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts
Production Name
DOT approved SAE J1401 1/8"HL auto parts
Test Items
Test Condition
Standard
Test Result
ID
Normal
3.2mm
3.15~3.45mm
OD
Normal
10.5mm
10.30~10.70mm

Expansion
1000psi
0.33cc/ft max.
0.14~0.16cc/ft
1500psi
0.42cc/ft max.
0.20~0.22cc/ft
2900psi
0.61cc/ft max.
0.41~0.43cc/ft
Burst
4000psi×2min;pressure rated 25,000±10,000psi/min
>7000psi No seepage
>10,500psi
Whip
235~250psi
>35h
>70h
Tensile
tensile speed:218±3mm/min
>1446N
2400N
Cold Bend
-45°C ~-48°C× 72h, 3-5s,bending180°
No cracking
No cracking
Ozone
100pphm×70h×40°C, 7X
No cracking
No cracking
Impulse
146°C 1±0.1min at 1600psi+70
>7000psi No crack
>7500psi
Compatibility
120°C × 70h
>7000psi No seepage
>8800psi
Salt Spray
5%NaCl, 24h,water cleanout in 35°C
No red rust
No red rust
Water Aging
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
>7000psi; >35h; >1446N
>10250psi;>60h; >2200N

Rubber Brake Hose Feature:

1.Two braid PVA reinforced hose
2.Meets FMVSS-106 and SAE J1401 specifications
3.Every brake hose pressure tested to 3500 psi( 240 bar or 24Mpa )
4.Burst pressure:minimum 7250 psi ( 500 bar or 50Mpa )

5.Temperature range -50°C to 121 °C

6.Compatible with DOT3,DOT4 and DOT4+ brake fluides

Application:

For use in braking system of the vehicle.

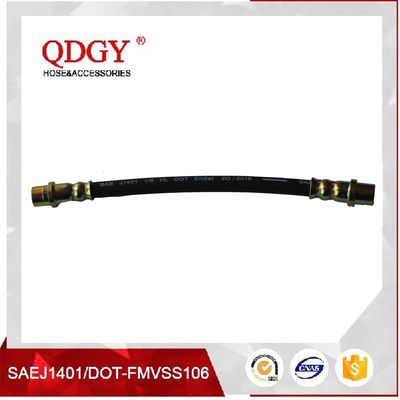

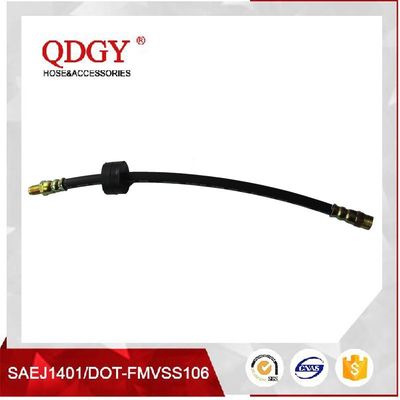

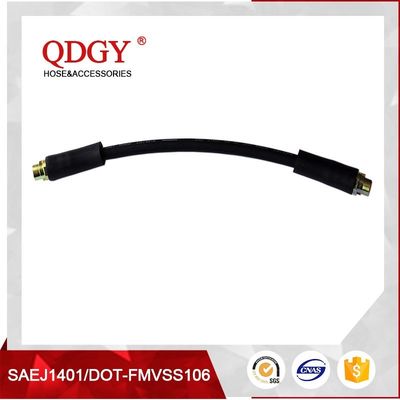

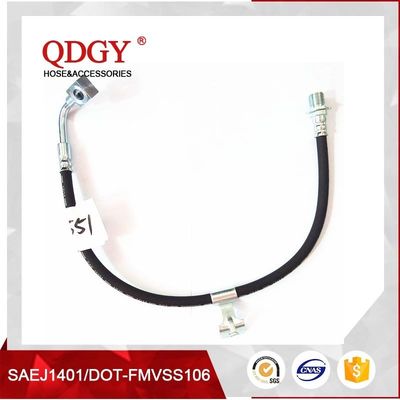

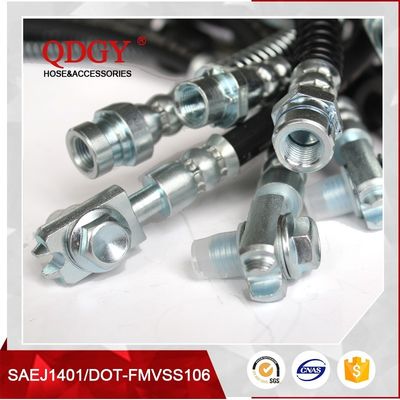

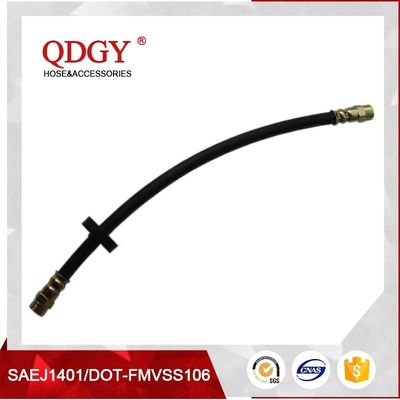

Detailed Images
TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts


TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts


TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts
Other Products
TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

Brake Hose Fittings

91.8% Response Rate

Brake Hose Assemblies

91.8% Response Rate

Teflon braided brakae lines

91.8% Response Rate


TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts
Making all kinds of fittings                                           making rubber brake hose


TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

Crimping brake hose assembly                              Making 100% test before shippment

Making 100% test before shippment

TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts
Our Service
TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

High quality

Passed the ISO9001:2002 quality system authentication and ROHS authentication.

Enough Stock

Enough stock for your urgent requestment,more quantity will arrange shortly.

Conveniently Shipment Type

Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Customer Photo

Why chose us?

Rubber Flexible brake oil hose line banjo fitting 10MM hole

Famous trademark of China
Passed TS16949,ISO9001,DOT...
National enterprise abiding by contract and keeping good faith
National key high-tech enterprise
Top ten influential brand of China brake hose and fittings industry
First place in production and sales of brake hose and fittings in China
ISO quality system certificate enterprise
Professional sales teams ,technical engineers and pratical workers,safety

Rubber Flexible brake oil hose line banjo fitting 10MM hole

Rubber Flexible brake oil hose line banjo fitting 10MM hole

What can I do for you?
1. Delivery time:30days after your deposit, which also will be on basis of your order.
2. Warranty:12 months.
3. Payment: 30% in advance by T/T 70% before shipment,other payments can be acceptable by negotiation.
4. Designing factory,technical support project.
5. Before sale service,middle sale service ,after-service will be supported
6. Related hose ,tube ,end terminal fittings,accessories and so on for sale.
7. All necessarry documents .



Packaging:

QDGY common package: PVC bag in carton box with QDGY logo

Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special

package

Rubber Flexible brake oil hose line banjo fitting 10MM hole

Lead time:

For fitting: common fitting within 30 days;special fitting within 40 days.

For brake hose: wihithin 20 days.

For brake hose assembly: within 40 days.

Please noted: Exact lead time is based on details order ,please contact with us for the details information.

Shipping:

Qingdao port(Chingtao port) is only about 30 minitues from our factory.

Qingdao airport is only about 40 minitues .

Conveniently by air or by ocean with cheaper freight fee.

Friends from India

Visiting our factory for brake hose,brake hose fitting and brake hose assemlbies.Satisfy to our quality control and good product very much.We established the good cooperation more than 10 years.

Friends from Singapore

Visiting our rubber brake hose factory,inspecting every production process and give us a high approvement.

Friends from Russia

Visiting our brake hose assembly factory.They love our company mission:To supply safety & credit to all the customers.



TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts



Testing Equipment & Test report:

TS16949/ISO9001 Certificated DOT approved SAE J1401 1/8"HL auto brake hose assembly parts

Burst Pressure test Machine,Hot & Cold test machine,Tensile test machine,Valumeteric expansion test machine ,Slat Spray test machine,Flex whip test machine.... We supply whole SAE J1401 brake hose Test process ,and stricly high quality control system promote us to go to futher bright future,if you want high quality and reasonable price ,find us,we will satisfy you.

Test Items
Test Condition
Standard
Test Results
ID
Normal
3.2mm
3.15~3.45mm
OD
Normal
10.5mm
10.30~10.70mm
Expansion
1000psi
0.33cc/ft max.
0.14~0.16cc/ft
1500psi
0.42cc/ft max.
0.20~0.22cc/ft
2900psi
0.61cc/ft max.
0.41~0.43cc/ft
Burst

4000psi×2min;pressure rated 25,000±10,000psi/min

>7000psi No seepage
>10,500psi
Whip
235~250psi
>35h
>70h
Tensile
tensile speed:218±3mm/min
>1446N
2400N
Cold Bend
-45°C ~-48°C× 72h, 3-5s,bending180°
No cracking
No cracking
Ozone
100pphm×70h×40°C, 7X
No cracking
No cracking
Impulse
146°C 1±0.1min at 1600psi+70
>7000psi No crack
>7500psi
Compatibility
120°C × 70h
>7000psi No seepage
>8800psi
Salt Spray
5%NaCl, 24h,water cleanout in 35°C
No red rust
No red rust
Water Aging
Water in 85±2°C,after 70h~72h 4000psi × 2min;pressure rated 25,000±10,000psi/min
>7000psi; >35h; >1446N
>10250psi;>60h; >2200N




Welcome to our facotry,you are our best friends.


FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:



Q1: Waht kinds of main rubber hose can product?

A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,teflon brake hose,teflon s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...

Q2: What size of brake hose can you supply?

A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")

Special size: 3.2x11mm...or your request size

Q3: Can you print the words(line) as our requirement?

A: Yes,we do provide embossed and printing marking with different color ,as your requirement.

Q4: What kinds of fitting can product?

A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...

Q5: How many types of brake hose do you product?

A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...

Q6: What is my order's delivery date?

A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website www.qdgybrakehose.com,we will reply you within 24 hours.
